Stage 1 – How Fiberglass Pool Shells Are Manufactured

Every fiberglass shell begins in a temperature and humidity-controlled indoor facility. These factory conditions matter because uncontrolled environments cause defects like uneven curing or poor adhesion between layers.

Manufacturers produce swimming pool shells on precision molds as one-piece structures. Because the shell arrives complete, on site construction time shrinks dramatically compared to concrete or gunite pools.

A single shell typically requires several days from first gel coat application through full cure and final inspection. The manufacturing goals are straightforward:

A smooth, glossy gelcoat finish

Structural strength to handle water pressure and soil loads

Resistance to osmosis and blistering

Exact adherence to dig sheet dimensions

While details vary by manufacturer, most follow a similar multi-layer laminate process using gelcoat, vinyl ester resin, reinforced fiberglass material, and structural ribs.

Molds and Design: Creating the Pool Shape

A pool mold is a full-size, polished negative form that defines every aspect of the finished shell—shape, depth profile, built in steps, benches, and features.

Key points about molds:

Manufacturers maintain families of molds covering common sizes (12’x24’ up to 16’x40’) and shapes (rectangular, freeform, plunge)

Molds are regularly resurfaced to maintain tolerances within 1/8-inch

Each shell receives a unique identifier for quality tracking

Design changes like adding tanning ledges or spas require new molds, often taking months of engineering

This precision is critical because the shell must drop perfectly level into the excavated hole without costly field adjustments.

Step 1 – Spraying the Gelcoat Finish

The gel coat is the glossy interior finish you see and touch. It provides color, UV resistance, and an algae-resistant surface.

Technicians spray multiple thin coats of colored gelcoat onto the mirror-smooth mold surface, building to 20-30 mils (0.8-1.0mm) thickness. They verify uniformity using gauges throughout application.

Popular colors include deep blue, light blue, and gray, with options for metallic flake effects. The gelcoat must partially cure under controlled conditions before structural layers are applied—rushing this step causes print-through or adhesion failures.

Step 2 – Applying the Vinyl Ester Barrier Layer

This is the layer that separates quality fiberglass pool shells from budget products.

Vinyl ester resin creates a critical moisture barrier protecting the gelcoat from osmotic blistering—a condition where water migrates through the shell and causes gelcoat delamination over time.

Technicians spray and roll chopped fiberglass with 100% vinyl ester resin over the cured gelcoat. They work air bubbles out with rollers because voids become weak spots or future blister locations.

When evaluating manufacturers, check that warranties explicitly cover osmotic blistering and specify vinyl ester barrier layer requirements. Shells without this layer often lack such coverage.

Step 3 – Building Strength with Polyester Resin and Fiberglass

Once the vinyl ester barrier is in place, manufacturers switch to polyester resin for building structural thickness. The vinyl ester below protects this layer from moisture, making polyester a safe and cost-effective choice.

The pool construction process involves:

Applying chopped strand fiberglass and polyester resin in multiple passes

Building thicker sections at walls, steps, benches, and corners

Monitoring laminate thickness using gauges or panel weighing

Allowing cure time between passes for chemical bonding

This layered approach creates a monolithic structure rather than mechanically bonded separate layers.

Step 4 – Reinforcing Stress Points and Structural Ribs

Stress concentrates at specific locations on every pool shell:

Where the pool wall meets the pool floor

Around corners and radiused transitions

Under benches and tanning ledges

At skimmer and return cutouts

Technicians place woven roving or directional fiberglass fabrics in these zones to increase tensile strength and crack resistance. Structural ribs or honeycomb cores are bonded to the shell exterior, forming stiffeners that prevent wall deflection.

These ribs are often filled or capped to resist crushing when backfill material and concrete decking are installed later. This hidden structure allows fiberglass shells to flex under soil and water pressure without failure for decades.

Step 5 – Final Laminate Layer and Cure in the Mold

A final laminate pass ties all reinforcement and ribs together into a single, monolithic fiberglass shell. Technicians thoroughly roll out trapped air and ensure even resin distribution.

The completed shell cures in the mold—typically overnight or for a full day—until reaching specified hardness. Some facilities use specific cure schedules or post-cure temperatures to optimize long-term strength and chemical resistance.

Step 6 – Releasing, Trimming, and Quality Inspection

Factory-installed lifting hooks allow chains or spreader bars to carefully separate the shell from the mold. A smooth release indicates proper preparation and cure.

Post-demolding steps include:

Trimming excess material to dig sheet specifications

Adding brick ties for concrete bond beam anchoring

Drilling and fitting plumbing holes (skimmer, main drains, returns, light niches)

Quality inspection for gelcoat integrity, wall thickness, and color consistency

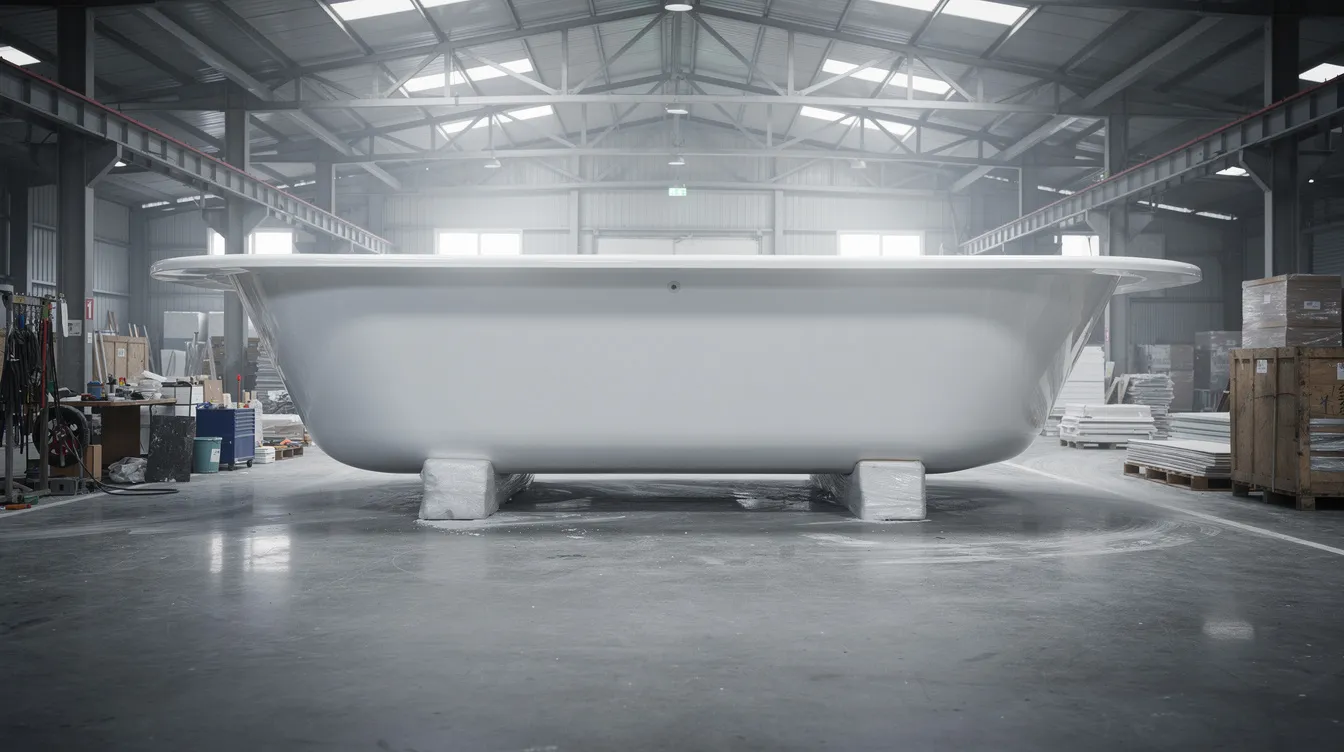

The shell is then staged on padded supports, ready for transport swimming pool shells to job sites on scheduled delivery dates.

Stage 2 – How Fiberglass Pools Are Installed On-Site

The fiberglass pool installation process typically spans 3-6 weeks from excavation to final fencing and inspections. However, swimming is often possible within the first few days after the shell is set.

Your installation timeline depends on weather conditions, soil conditions, site access, and permitting schedules. Each phase may involve separate crews and inspections.

Expect heavy machinery in your backyard—excavators, cranes, concrete trucks—and temporary disruption to lawns, driveways, and landscaping. This is unavoidable but temporary.

Local codes in your area in 2026 may alter specific steps. Discuss a detailed written schedule and contingency plan for rain or unexpected issues with your builder before work begins.

Pre-Construction Planning, Permits, and Site Layout

The process begins weeks before any crew member digs. Your contractor will secure permits for the pool, electrical connections, and sometimes fencing or drainage based on local requirements.

Site prep includes:

Confirming underground utilities via marking services

Reviewing property surveys for setbacks and easements

Marking the pool outline, equipment pad, and deck edges using the dig sheet

Establishing finished pool height with a laser level relative to house and drainage

Careful site preparation reduces surprises and helps you visualize the finished project before the excavation site takes shape.

Excavation and Base Preparation

Excavation typically uses an excavator to dig while a skid steer moves and hauls soil away. The hole is dug 8-12 inches larger than the shell footprint to allow for a gravel base and backfill.

Depth is controlled using laser levels so the base material plus shell depth matches planned waterline elevation. A compacted gravel or crushed stone base (usually 2+ inches) provides drainage and a stable foundation.

Special situations require additional measures:

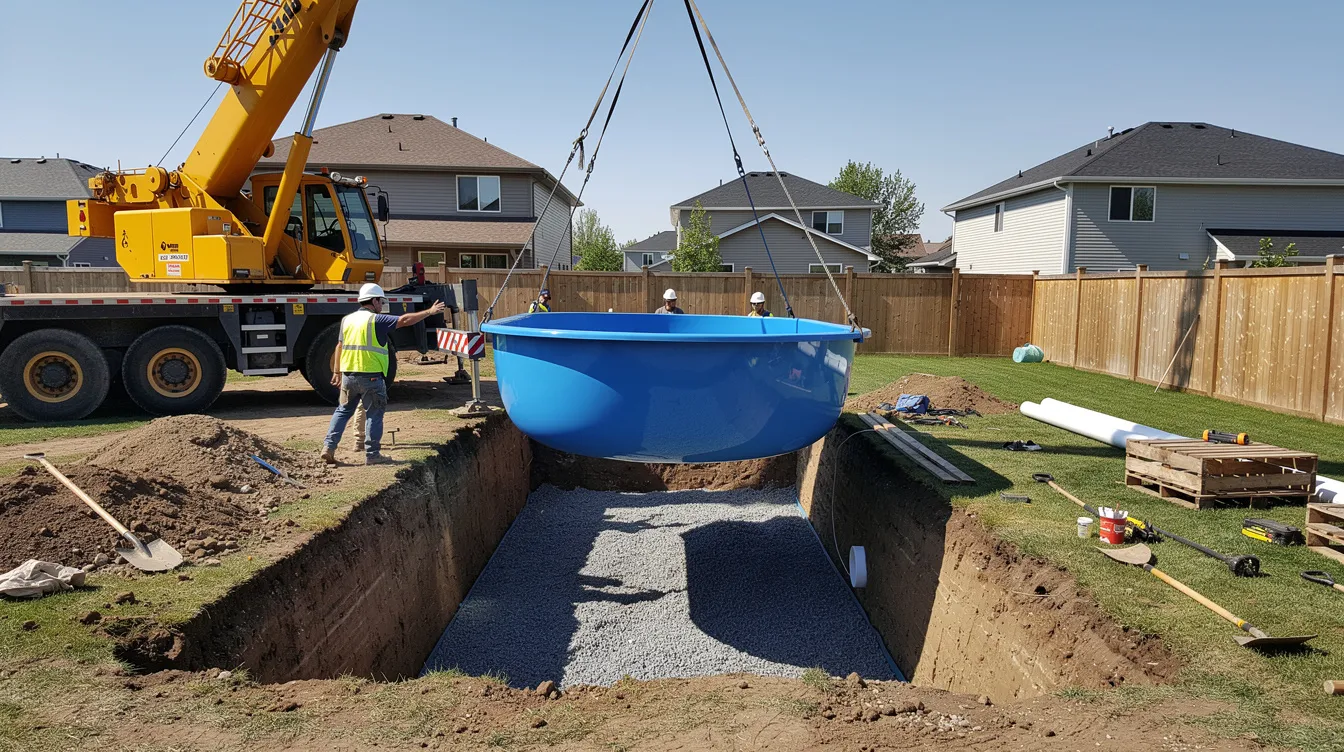

Delivering, Setting, and Leveling the Shell

Fiberglass pool delivery arrives on a specialized truck on a scheduled day. A crane or large excavator is typically ready for crane placement immediately.

Riggers attach lifting straps to factory-approved points to prevent shell distortion. The pool is lowered into the excavated area, checked with laser levels across multiple points, and adjusted using gravel until level within 1/4-inch tolerance.

Complex shapes or features like built-in spas may require multiple lifts and resets. Taking time to get the shell perfectly level is crucial for appearance, waterline symmetry, and long-term structural performance.

Plumbing, Equipment Pad, and Electrical Rough-In

The circulation system includes skimmer, main drains, returns, pump and filter system, heater, and optional water features like waterfalls or deck jets.

PVC pipe plumbing lines run from pool fittings to an equipment pad typically 30-50 feet away. Lines are pressure-tested before backfilling to verify no leaks.

Equipment pad layout should include space for future upgrades like heat pumps or saltwater chlorinators. A licensed electrician runs conduit, bonding loops, and wiring for the pool pump, lights, and automation.

Local electrical codes and inspections can add days to your overall installation timeline.

Filling the Pool and Backfilling Around the Shell

The fill-and-backfill technique involves simultaneously filling pool water inside while adding gravel outside in layers. This equalizes pressure and supports the walls.

Typical approach:

Backfill in 6-12 inch lifts

Raise water level to match backfill height

Compact backfill around plumbing penetrations and under steps

Prevent voids that cause future settling

At this phase—often within a few weeks of starting—many pools are technically swimmable pending safety and electrical approvals. However, no diving until decks and pool fence are complete.

Coping, Decking, and Surrounding Hardscape

Coping is the material that finishes the pool edge and transitions to the deck. Options include concrete, stone, pavers, or precast materials.

After backfill and inspections, installers pour concrete decking or lay pavers around the pool area. Expansion joints and drainage slopes direct water away from the pool and house.

Customization options include integrated steps, built-in seating, fire pits, or outdoor kitchens. Weather conditions (rain or cold) can delay this phase, sometimes spreading work over 1-3 weeks for curing.

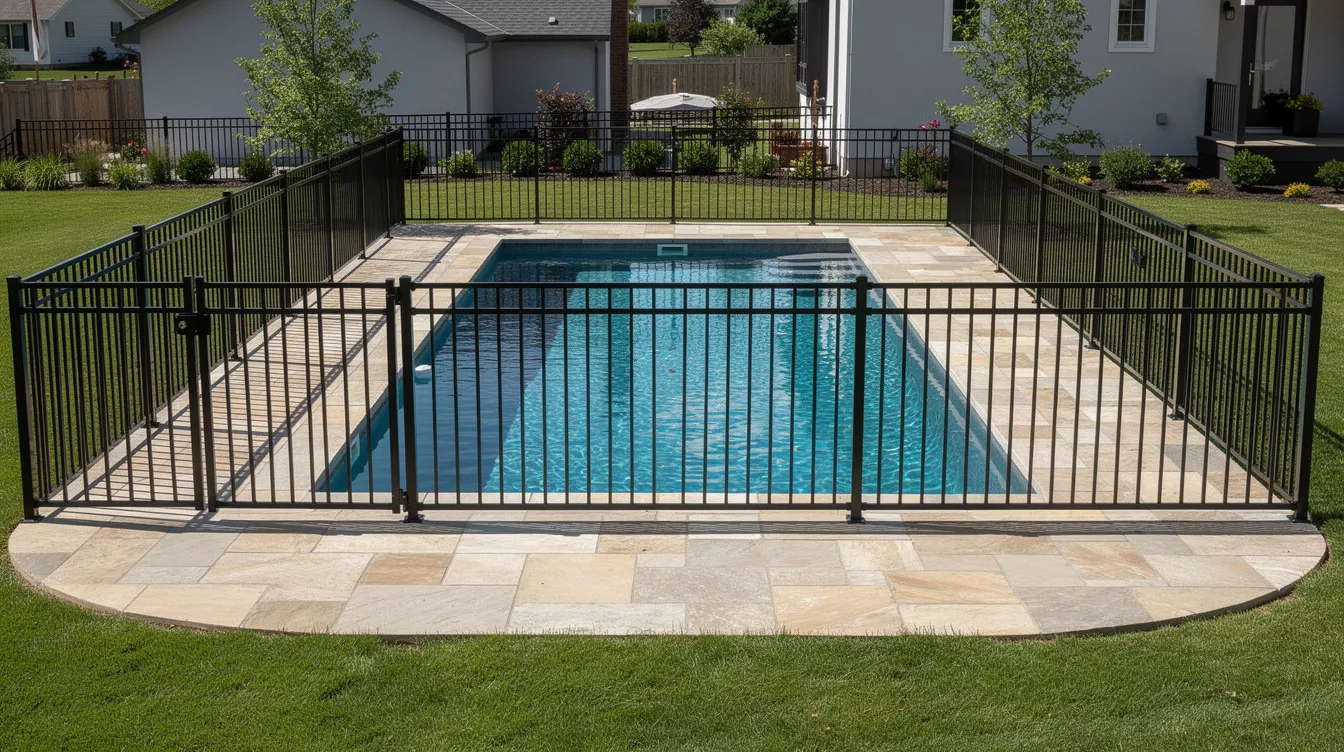

Fencing, Safety Features, and Final Inspections

Most jurisdictions require safety barriers meeting current safety regulations—typically minimum 4-foot height with self-closing, self-latching gates.

Fence material options include aluminum, vinyl, wood, or mesh. Additional safety measures may include door alarms or powered safety covers.

Final inspection covers:

Fencing compliance

Electrical bonding and grounding

Circulation and drain compliance

Filtration systems operation

Once fencing is complete, pool water chemistry is balanced, and inspections pass, your new fiberglass pool is fully open for regular use.

Timeline: How Long Manufacturing and Installation Typically Take

Here’s a realistic fiberglass pool installation timeline breakdown:

Compare this to alternatives:

Vinyl liner pools: 2-4 weeks

Concrete pools: 6-8+ weeks for shell construction plus additional curing

Major timeline extenders include weather delays, inspection backlogs, driveway repairs, underground rock, high water table, and custom hardscape complexity. Use this as a planning tool—if you want to swim by July, start the process in early spring.

Key Considerations for a Successful Fiberglass Pool Project

Understanding both manufacturing and the installation process helps you evaluate bids, warranties, and quality claims in 2026’s competitive market for a new fiberglass pool.

Ask prospective builders specifically designed questions:

What resins are used in shell construction?

What is the wall thickness specification?

Does the warranty cover osmotic blistering?

What base material and backfill type do you use?

What leveling tolerances do you guarantee?

Document access routes and potential risks to driveways or landscaping. Clarify who handles repairs if damage occurs during heavy equipment use.

Request a written project schedule with contingency allowances for rain and inspections. Get a clear list of what’s included—fence, electrical, permits, startup chemicals, owner orientation, and pool service for the first season.

Installing a fiberglass pool is a significant investment, but the total cost over time favors fiberglass swimming pool durability and low maintenance compared to alternatives. Start planning now—manufacturing lead times and installer calendars fill up months in advance, especially for summer installations.
